In modern HVAC design, not every space needs a large ducted system or a standalone split air conditioner. Many hotels, offices, hospitals, apartments, and commercial buildings require flexible room-by-room comfort with compact equipment that can be connected to a chilled water or hot water system. This is where FCU in HVAC becomes important.
FCU full form in HVAC is Fan Coil Unit. A fan coil unit is a terminal HVAC device that uses a fan and a coil to condition air in a specific room or zone. It is widely used in buildings where local temperature control, quiet operation, compact installation, and zoning flexibility are important.
A fan coil unit in HVAC can be installed in different forms, including ceiling-mounted, cassette, floor-mounted, wall-mounted, and concealed units. Daikin describes fan coils as distributed heating and cooling equipment designed to condition the air space they serve, with exposed or recessed configurations and installation options including cassette, exposed ceiling, concealed ceiling, floor-mounted, and wall-mounted units.
In this guide, we explain what is FCU in HVAC, the FCU meaning in HVAC, the main FCU types, how an HVAC cassette unit works, how FCUs compare with split systems, and how air curtains can support FCU performance in lobbies, receptions, and high-traffic entrances.
What Is an FCU?
An FCU, or Fan Coil Unit, is an HVAC terminal unit that conditions air locally within a room or zone. It usually includes a fan, a heat exchange coil, air filter, drain pan, control valve, and thermostat or room controller.
The fan pulls room air into the unit, passes it across the cooling or heating coil, and then supplies conditioned air back into the space. Depending on the system design, the coil may use chilled water for cooling, hot water for heating, or both.
Johnson Controls Arabia describes fan coil units as systems designed for zone cooling and heating using chilled water or hot water, and notes their suitability for apartments, hotels, shopping centers, office buildings, and hospitals.
FCU Meaning in HVAC
The FCU meaning in HVAC is simple:
FCU = Fan Coil Unit
It is a compact air conditioning terminal unit used to control temperature in a specific room or zone.
An FCU is not usually responsible for supplying large amounts of fresh outdoor air. In many designs, fresh air is provided by a separate air handling unit, fresh air handling unit, or dedicated outside air system. The FCU mainly handles local cooling or heating inside the zone.
Main Components of a Fan Coil Unit
A typical FCU includes:
- Fan or blower
- Cooling coil
- Heating coil, if required
- Air filter
- Drain pan
- Condensate drain
- Control valve
- Thermostat or room controller
- Casing or concealed housing
- Air inlet and outlet
- Optional fresh air connection in selected models
The exact configuration depends on the project design and FCU type.
How Does a Fan Coil Unit Work?
A fan coil unit in HVAC works by circulating room air across a coil. The coil either cools or heats the air depending on the water temperature and system mode.
Step 1: Room Air Enters the FCU
The fan pulls indoor air into the unit through a return grille or intake opening.
Step 2: Air Passes Through a Filter
The filter captures larger dust particles and helps protect the internal coil from dirt buildup. The filter must be cleaned or replaced regularly to maintain airflow.
Step 3: Air Moves Across the Coil
The air passes over the coil. If chilled water is flowing through the coil, heat is removed from the air. If hot water is flowing through the coil, the air is heated.
Step 4: Conditioned Air Returns to the Room
The fan supplies the conditioned air back into the space through a grille, diffuser, cassette outlet, or duct connection.
Step 5: The Controller Adjusts Operation
A thermostat or room controller adjusts fan speed, valve position, and operating mode based on the room temperature setpoint.
ASHRAE Guideline 36 includes control sequences for 2-pipe cooling, 2-pipe heating, and 4-pipe heating/cooling fan-coil units, which shows that FCU control can vary depending on whether the system is designed for cooling only, heating only, or both heating and cooling.
FCU Types: Ceiling, Cassette, Floor, and Concealed
There are several FCU types, and each type is selected according to ceiling design, space function, aesthetics, noise requirements, maintenance access, and airflow needs.
1. Ceiling FCU
A ceiling FCU is installed at ceiling level, either exposed or concealed depending on the design. It is commonly used in offices, hotels, corridors, apartments, and commercial rooms.
Best Uses
Ceiling FCUs are suitable for:
- Hotel rooms
- Offices
- Apartments
- Corridors
- Clinics
- Small commercial spaces
- Meeting rooms
Advantages
- Saves floor space
- Suitable for repeated room layouts
- Good for hotels and offices
- Can be exposed or concealed
- Flexible installation in ceiling spaces
Limitations
- Requires ceiling access for maintenance
- Poor installation may cause noise or condensation issues
- Ceiling height and coordination with other services must be considered
- Air distribution depends on outlet placement and room layout
When to Choose Ceiling FCU
Choose a ceiling FCU when the project needs compact zone cooling and the ceiling void can accommodate the unit, pipes, drain, filters, and access panels.
2. HVAC Cassette Unit
An HVAC cassette unit is usually installed within the ceiling and supplies air in multiple directions, often through a square or rectangular decorative panel. It is widely used in offices, retail spaces, hotel rooms, restaurants, and meeting rooms.
Best Uses
Cassette FCUs are commonly used in:
- Offices
- Hotel rooms
- Restaurants
- Retail stores
- Meeting rooms
- Clinics
- Open-plan spaces
- Reception areas
Advantages
- Good air distribution in multiple directions
- Clean ceiling appearance
- Suitable for occupied areas
- Saves wall and floor space
- Often preferred in commercial interiors
Carrier Saudi Arabia highlights fan coils as offering minimum noise, minimum space, and flexible options for improving efficiency and comfort, which supports why cassette and ceiling-type FCUs are common in commercial interiors.
Limitations
- Requires adequate ceiling space
- Maintenance access must be planned
- Drainage must be properly designed
- Not ideal where ceiling height is very limited
- Incorrect location can create drafts or uneven comfort
Is Cassette FCU More Efficient Than Ceiling FCU?
A cassette FCU is not automatically more efficient than a ceiling FCU. Efficiency depends on coil performance, fan motor, controls, system design, airflow, maintenance, and operating conditions. Cassette units may provide better air distribution in some rooms, while concealed ceiling FCUs may be better for projects requiring ducted air delivery or hidden equipment.
3. Floor-Mounted FCU
A floor-mounted FCU is installed near floor level, either exposed in a cabinet or recessed into a wall or perimeter area. It is commonly used where ceiling installation is difficult or where perimeter heating and cooling are needed.
Best Uses
Floor-mounted FCUs are suitable for:
- Hotel rooms
- Apartments
- Perimeter zones
- Offices with limited ceiling space
- Retrofit projects
- Buildings with glass façades
- Rooms where ceiling installation is not preferred
Advantages
- Easier maintenance access
- Good for perimeter comfort
- Useful where ceiling space is limited
- Can be installed as exposed cabinet units
- Practical for retrofit applications
Limitations
- Uses wall or floor area
- May affect furniture layout
- Visible unit may not suit all interiors
- Airflow can be blocked by furniture if poorly located
When to Choose Floor FCU
Choose a floor FCU when ceiling space is restricted, perimeter comfort is important, or access for maintenance needs to be simple.
4. Concealed FCU
A concealed FCU is hidden above the ceiling, inside a bulkhead, or within a service space. It supplies air through grilles, diffusers, or short duct runs, making it suitable for projects where aesthetics are important.
Best Uses
Concealed FCUs are often used in:
- Hotels
- Luxury apartments
- Offices
- Clinics
- Executive rooms
- Meeting rooms
- Premium commercial spaces
- Spaces with high interior design requirements
Advantages
- Hidden equipment
- Better interior appearance
- Can connect to short duct runs
- Suitable for premium spaces
- Flexible diffuser placement
Limitations
- Requires ceiling void
- Needs access panels for maintenance
- Higher installation coordination
- Duct and diffuser design affect performance
- Poor condensate drainage can cause serious issues
When to Choose Concealed FCU
Choose concealed FCUs when interior appearance matters and the project can provide proper ceiling space, access, drainage, and service coordination.
5. Wall-Mounted FCU
A wall-mounted FCU is fixed to the wall and supplies air directly into the room. It is similar in appearance to a wall-mounted split indoor unit but connected to a chilled water system instead of a DX outdoor unit.
Best Uses
Wall-mounted FCUs are suitable for:
- Small offices
- Apartments
- Server support rooms
- Retrofit projects
- Rooms without ceiling voids
- Small commercial spaces
Advantages
- Easy access
- Simple installation
- No ceiling void needed
- Good for small rooms
- Lower installation complexity than concealed units
Limitations
- Visible indoor unit
- Limited architectural appeal
- Air distribution may be less flexible
- Not always suitable for luxury interiors or large rooms
6. High-Static FCU
A high-static FCU is designed to overcome higher external static pressure and can be connected to ductwork for distributing air to multiple outlets or larger spaces.
Best Uses
High-static FCUs are used in:
- Offices
- Larger hotel suites
- Commercial rooms
- Clinics
- Areas requiring ducted supply
- Spaces with multiple diffusers
Advantages
- Can serve multiple outlets
- Better ducted distribution
- Suitable for concealed installation
- Useful for larger zones
- More flexible than direct-discharge units
Limitations
- Requires duct design
- Higher fan energy than low-static units
- Needs proper balancing
- More installation coordination
Windmason, a Saudi FCU supplier, describes high-static FCUs as suitable for ducted systems in large spaces and high-ceiling applications, which reflects their use where higher air volume and pressure stability are needed.
FCU Types Comparison Table
FCU Type | Best For | Main Advantage | Main Limitation |
Ceiling FCU | Hotels, offices, corridors, clinics | Saves floor space and suits repeated layouts | Needs ceiling access and coordination |
HVAC Cassette Unit | Offices, retail, restaurants, meeting rooms | Good multi-directional air distribution | Requires ceiling space and drainage planning |
Floor FCU | Perimeter zones, retrofits, hotel rooms | Easy access and useful where ceiling space is limited | Uses floor or wall area |
Concealed FCU | Hotels, premium offices, luxury interiors | Hidden installation and better aesthetics | Requires access panels and careful coordination |
Wall-Mounted FCU | Small rooms and retrofits | Simple installation and easy access | Visible unit and limited design flexibility |
High-Static FCU | Larger zones and ducted applications | Can connect to ducts and multiple outlets | Needs proper duct design and balancing |
FCU vs Split System
One of the most common comparisons in HVAC design is FCU vs Split System. Both can provide room-level cooling, but they work differently.
A split system usually includes an indoor unit and an outdoor unit connected by refrigerant piping. An FCU is typically connected to a central chilled water or hot water system and uses water coils to condition air.
FCU vs Split System Comparison
Point | FCU in HVAC | Split System |
Main medium | Chilled water / hot water | Refrigerant |
Connected to | Central plant or chilled water network | Outdoor condensing unit |
Best for | Hotels, offices, hospitals, large buildings | Homes, small offices, small shops |
Zone control | Good room-by-room control | Good for individual spaces |
Fresh air | Usually separate system required | Usually separate system required |
Maintenance | Central plant + local units | Multiple individual systems |
Aesthetics | Can be concealed or cassette | Often visible indoor units |
Project scale | Medium to large buildings | Small to medium spaces |
When FCU Is Better
FCU may be better when:
- The building has a central chilled water system.
- Many rooms need local control.
- Long-term centralized maintenance is preferred.
- The project is a hotel, hospital, or office building.
- Indoor unit appearance and noise control matter.
- The building requires integration with central HVAC controls.
When Split System Is Better
A split system may be better when:
- The project is small.
- There is no chilled water system.
- Initial cost must be minimized.
- Installation needs to be simple.
- Each space can operate independently.
- Maintenance resources are limited.
FCU in Hotels and Offices
FCUs are widely used in hotels and offices because these building types need zone-level control, quiet operation, and flexible installation.
FCU in Hotels
Hotels have different cooling needs across guest rooms, corridors, lobbies, restaurants, meeting rooms, and back-of-house spaces. FCUs are useful because each room or zone can be controlled separately.
Why FCUs Work Well in Hotels
- Individual guest room control
- Quiet operation
- Flexible ceiling or concealed installation
- Good fit with chilled water systems
- Suitable for repeated room layouts
- Easy integration with hotel controls
- Better comfort management for occupied and unoccupied rooms
In hotel applications, concealed ceiling FCUs and cassette units are often preferred because they support interior design while providing zone comfort.
FCU in Offices
Offices often have meeting rooms, open work areas, executive rooms, corridors, and support spaces with different cooling needs. FCUs allow flexible zoning and can be selected according to room type.
Why FCUs Work Well in Offices
- Room-by-room control
- Suitable for tenant fit-outs
- Compatible with chilled water systems
- Works with cassette or concealed layouts
- Good for meeting rooms and enclosed offices
- Can reduce overcooling when zones are controlled separately
For modern offices, cassette FCUs are common in open areas, while concealed FCUs are often used in executive rooms or spaces with higher design requirements.
FCU in Hospitals and Clean Rooms
FCU in hospitals and clean rooms requires careful design. Healthcare spaces often need higher standards for air quality, filtration, pressure control, hygiene, and maintenance access. FCUs may be used in selected hospital areas, but they must be applied according to the room function and infection-control requirements.
Where FCUs May Be Used in Hospitals
FCUs may be suitable for:
- Administrative offices
- Waiting areas
- Staff rooms
- General wards, depending on design
- Non-critical support spaces
- Selected patient areas, subject to standards
Where FCUs May Not Be Suitable Alone
FCUs may not be suitable as the only air-conditioning solution in:
- Operating rooms
- Isolation rooms
- Critical care areas
- Sterile processing areas
- Clean rooms with strict contamination control
- Spaces requiring precise pressure relationships
In these areas, dedicated AHUs, HEPA filtration, pressure control, and specialized ventilation systems may be needed.
Important Design Considerations
For healthcare and clean-room-related applications, designers should consider:
- Filtration requirements
- Condensate management
- Cleanability
- Drain pan hygiene
- Access for maintenance
- Noise level
- Room pressure requirements
- Fresh air supply
- Infection-control strategy
- Local code and healthcare standards
FCUs can support comfort in healthcare buildings, but they must be selected and maintained carefully.
How to Select the Right FCU
Selecting the right FCU should be based on project requirements, not only unit size or price.
1. Cooling and Heating Load
The FCU must be selected according to the room cooling load. Undersized units will fail to maintain comfort, while oversized units may create short cycling, noise, and poor humidity control.
2. FCU Type
Choose the unit type according to the room layout:
- Ceiling FCU for standard commercial and hotel spaces.
- Cassette FCU for open rooms needing multi-directional airflow.
- Floor FCU for perimeter zones and limited ceiling spaces.
- Concealed FCU for premium interiors.
- Wall-mounted FCU for simple small rooms.
- High-static FCU for ducted applications.
3. Airflow and Noise
Airflow should match room load and comfort requirements. Noise is especially important in:
- Hotel rooms
- Hospitals
- Offices
- Meeting rooms
- Bedrooms
- Libraries
- Clinics
Daikin Applied describes fan coil units as available in horizontal, vertical, and unit heater styles and highlights features such as controls, low sound data, ECM motor selections, piping packages, and high-static filter options.
4. Chilled Water System Design
FCUs connected to chilled water systems depend on correct water flow, valve control, pump sizing, coil selection, and balancing.
Designers should check:
- Entering water temperature
- Leaving water temperature
- Water flow rate
- Coil pressure drop
- Valve selection
- Pipe sizing
- Balancing requirements
5. Fresh Air Requirements
Most FCUs recirculate room air. If the building needs fresh air, it should be provided through a separate fresh-air system or approved ventilation method.
This is important in offices, hotels, hospitals, and public spaces where indoor air quality depends on fresh-air supply and filtration.
6. Condensate Drainage
Because FCUs remove moisture from air during cooling, condensate must be drained safely. Poor drainage can cause water leakage, ceiling damage, odor, and hygiene problems.
Check:
- Drain slope
- Drain pan design
- Condensate pump if required
- Trap arrangement
- Maintenance access
- Insulation around chilled surfaces
7. Maintenance Access
Every FCU needs access for filter cleaning, coil inspection, valve service, drain cleaning, and fan maintenance. Concealed units must include properly located access panels.
8. Control Strategy
FCUs can be controlled by wall thermostats, local controllers, hotel key-card systems, BMS integration, or smart room controls.
Controls may manage:
- Fan speed
- Valve opening
- Cooling or heating mode
- Setpoint
- Occupancy mode
- Scheduling
- Fault alarms
9. Application Environment
The same FCU is not suitable for every building. A hotel room, hospital area, office room, and lobby each have different comfort, noise, hygiene, and operating requirements.

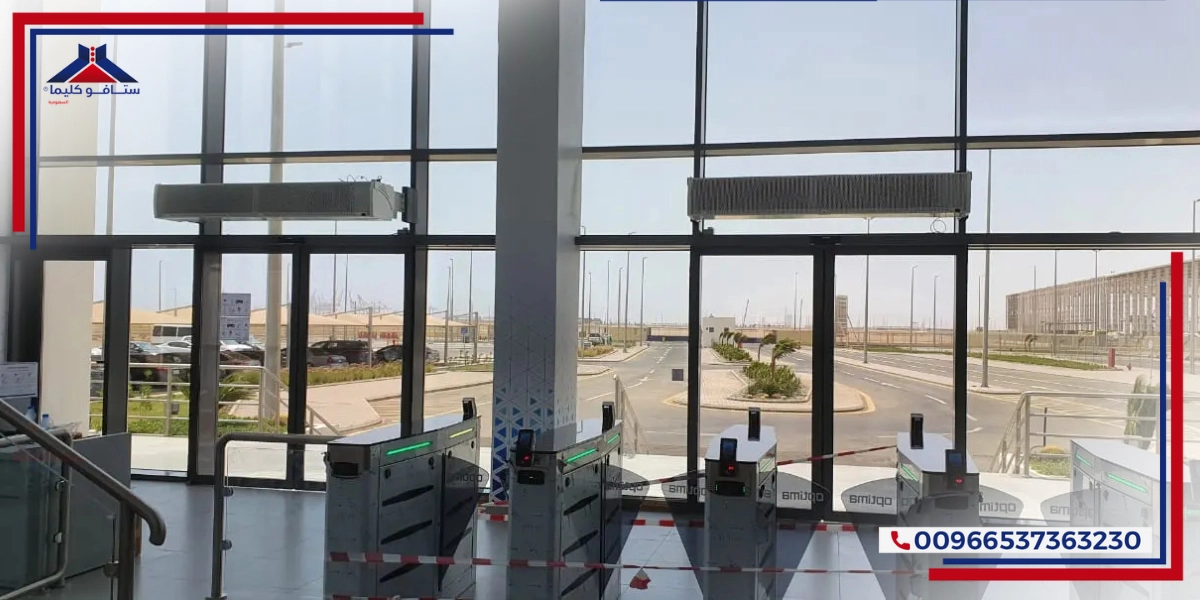

Air Curtains with FCU in Lobbies
FCUs work well inside zones, but entrance lobbies create a special challenge. In Saudi Arabia, building entrances are exposed to hot outdoor air, dust, humidity, insects, and frequent door openings. Every time doors open, cooled air can escape and hot outdoor air can enter.
If a lobby is served by FCUs, these sudden air changes can increase the cooling load and make the entrance zone uncomfortable. The FCU may need to run harder, while occupants still feel heat near the door.
This is where air curtains complement FCU systems.
An air curtain creates a controlled stream of air across the doorway. This invisible barrier helps reduce the exchange between indoor and outdoor air while allowing people to move freely.
How Air Curtains Work Alongside FCU Systems
Air curtains support FCU performance by:
- Reducing hot air infiltration at lobby entrances.
- Helping keep cooled air inside the building.
- Supporting more stable lobby temperature.
- Reducing dust and insect entry.
- Improving comfort near reception and waiting areas.
- Reducing sudden load changes on lobby FCUs.
- Protecting the indoor environment without blocking movement.
Air curtains do not replace FCUs. They protect the entrance so the FCU can condition the lobby under more stable conditions.

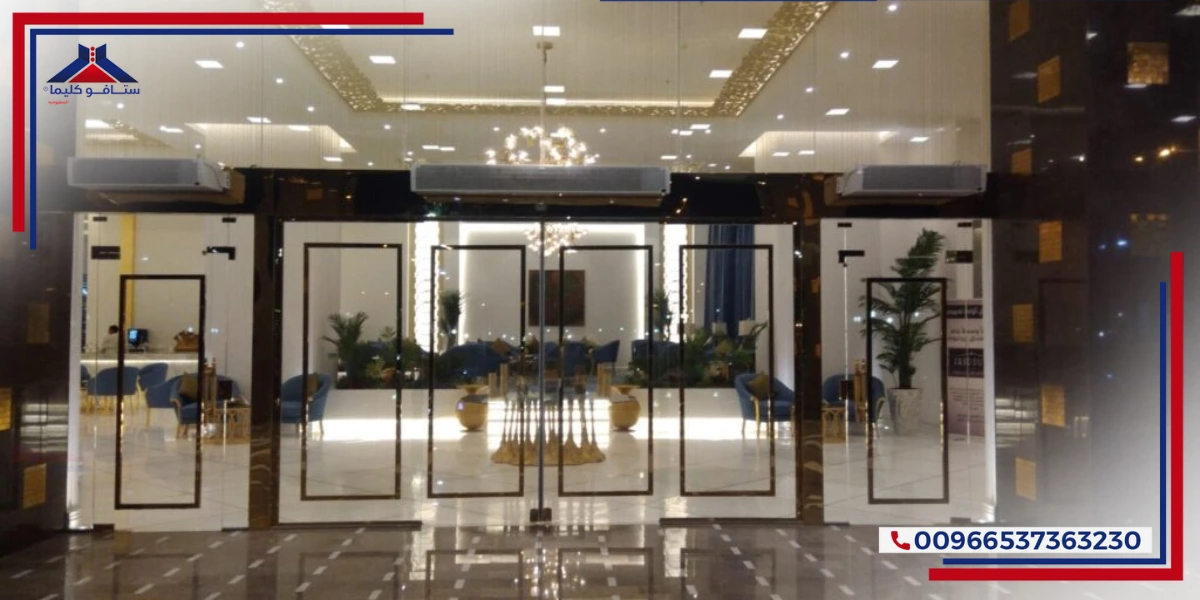

Stavoklima Saudi Arabia: Air Curtains That Support FCU Performance
At Stavoklima Saudi Arabia, we specialize in air curtain solutions that protect HVAC performance at entrances, including buildings that use FCUs, chillers, package units, VRF systems, split systems, and central air distribution.
In buildings with FCU in HVAC applications, entrance lobbies are often one of the most important places to protect. The FCU conditions the lobby air, while the air curtain helps reduce cooled-air loss and outdoor air infiltration at the door.
How We Support FCU-Based Buildings
- We protect lobby entrances
Our air curtains help reduce hot air, dust, humidity, and insects entering through frequently used doors. - We support stable indoor comfort
By reducing entrance disturbance, our solutions help FCUs maintain more stable lobby conditions. - We recommend the right model for each entrance
Door height, width, traffic level, pressure conditions, and interior design all affect air curtain selection. - We provide solutions for different sectors
We support hotels, offices, hospitals, restaurants, retail stores, warehouses, and commercial buildings. - We protect HVAC efficiency without blocking movement
Air curtains create an invisible barrier, allowing visitors, staff, carts, and goods to move freely.
If your building uses FCUs in lobbies, reception areas, or high-traffic entrances, contact Stavoklima Saudi Arabia to choose the right air curtain solution and protect your HVAC performance from the doorway.
Stavoklima Projects in Saudi Arabia
At Stavoklima Saudi Arabia, our projects show how air curtains support HVAC efficiency in entrances, lobbies, and sensitive indoor environments. For this article, we selected projects that connect clearly with hospitality, healthcare, and office-style entrance protection.
1. The Ritz-Carlton Hotel, Jeddah
At The Ritz-Carlton Hotel in Jeddah, Stavoklima worked with the engineering team to study entrance conditions and select an air curtain solution that matched both performance needs and interior design. The challenge included limited space between the main door and ceiling, so a concealed air curtain solution was selected to protect entrance comfort while preserving the hotel’s luxury appearance.
This type of project is highly relevant to FCU-based hotels because lobbies and public areas often require stable comfort despite heavy guest traffic.

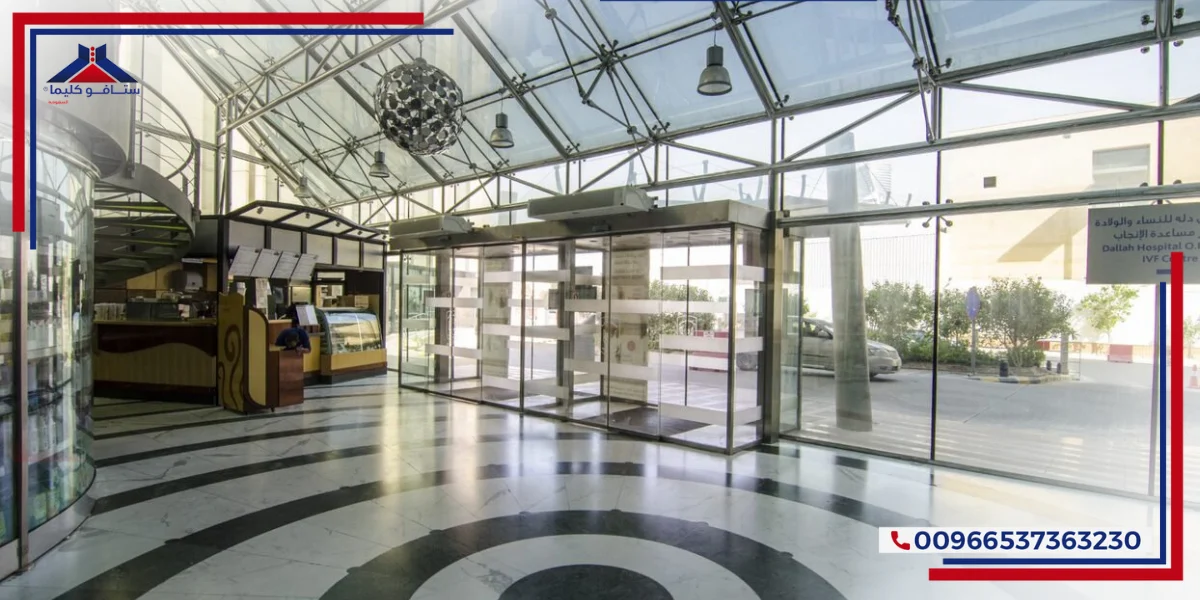

2. Dallah Hospital
At Dallah Hospital, Stavoklima selected Li Mini air curtains in different sizes for hospital entrances and reception areas. The goal was to help protect a sensitive healthcare environment from outdoor air, dust, insects, and possible contaminants while maintaining comfort for patients and visitors.
For healthcare buildings where FCUs may serve selected non-critical rooms and comfort zones, air curtains help protect entrance areas from external air disturbance.
3. Riyadh Digital City
At Riyadh Digital City, Stavoklima installed Li Pico air curtains to improve air quality, reduce energy consumption, and support a cleaner and more comfortable working environment. The project also considered design integration, which is important in modern office and commercial buildings.
This makes the project relevant to office buildings where FCUs are commonly used for zone comfort, while air curtains protect entrances and shared access areas.
What These Projects Show
- Air curtains are highly valuable in hotels, hospitals, and office environments.
- Lobby entrances are priority areas because they experience frequent door movement.
- Air curtains help protect FCU performance by reducing outdoor air infiltration.
- Concealed and compact air curtain models can support interior design requirements.
- Entrance protection improves comfort without obstructing visitors, staff, or operations.
From hotel lobbies and hospital receptions to offices and commercial entrances, Stavoklima Saudi Arabia helps protect HVAC comfort where doors open most. Contact our team for a free consultation and model recommendation.
FCU Selection Checklist
Before selecting a fan coil unit, review the following:
- What is the room cooling load?
- Is heating required, or cooling only?
- Is the system 2-pipe or 4-pipe?
- What FCU type fits the space: ceiling, cassette, floor, concealed, wall-mounted, or high-static?
- Is there enough ceiling or wall space?
- Is maintenance access available?
- What is the required airflow?
- What noise level is acceptable?
- Is fresh air supplied separately?
- Is condensate drainage properly designed?
- Are filters easy to access?
- Is BMS or room controller integration required?
- Is the entrance protected with an air curtain if the FCU serves a lobby or reception zone?
Final Thoughts
FCU in HVAC refers to a Fan Coil Unit, a compact and flexible terminal unit used to condition individual rooms and zones. FCUs are widely used in hotels, offices, hospitals, apartments, and commercial buildings because they provide local comfort control and can be installed in several forms, including ceiling, cassette, floor, concealed, wall-mounted, and high-static units.
Understanding FCU meaning in HVAC, the difference between FCU and split systems, and the right applications for each FCU type helps engineers, contractors, facility managers, and building owners make better HVAC decisions.
However, FCU performance is not only about the unit itself. In entrance lobbies and reception areas, frequent door openings can increase cooling load, reduce comfort, and allow dust and humidity to enter. Air curtains help protect these zones by reducing uncontrolled air exchange at doors.
A well-selected FCU controls comfort inside the zone. A well-selected air curtain helps protect that comfort at the entrance.
FAQs
What is the difference between FCU and Split System?
An FCU uses chilled water or hot water from a central system to condition air in a room or zone. A split system uses refrigerant and has an indoor unit connected to an outdoor unit. FCUs are common in hotels, offices, and hospitals, while split systems are common in homes and small spaces.
What is FCU in HVAC?
FCU in HVAC means Fan Coil Unit. It is a terminal unit that uses a fan and a coil to cool or heat air in a specific room or zone.
What is the FCU full form in HVAC?
The FCU full form in HVAC is Fan Coil Unit.
What is FCU meaning in HVAC?
FCU meaning in HVAC refers to a compact HVAC terminal unit that circulates room air across a cooling or heating coil to control the temperature of a specific zone.
Which FCU type is best for commercial offices?
For commercial offices, cassette FCUs and concealed ceiling FCUs are often preferred. Cassette FCUs provide good multi-directional airflow, while concealed FCUs offer better aesthetics and flexible diffuser placement.
Is Cassette FCU more efficient than Ceiling FCU?
A cassette FCU is not automatically more efficient than a ceiling FCU. Efficiency depends on unit selection, coil performance, fan motor, controls, airflow design, and maintenance. Cassette units may offer better air distribution in certain room layouts.
How do air curtains work alongside FCU systems?
Air curtains work alongside FCU systems by reducing hot air infiltration, cooled-air loss, dust, humidity, and insects at entrances. This helps FCUs maintain more stable lobby or reception temperatures.
Is an HVAC cassette unit suitable for hotels?
Yes. An HVAC cassette unit can be suitable for hotels, especially in guest rooms, meeting rooms, restaurants, and open areas where ceiling integration and multi-directional airflow are useful.
